Professional Knob Handle A2 A4 Stainless Steel Quick Release Ball Lock Pin

Inquiry

Features
Specification
Description
Quick Details
Video
Inquiry
Related Products

Features

Quick Details:

Body: Stainless steel 304/316/17-4PH

Locking pin: Stainless steel

Handle Type: Button handle

Size: M5 M6 M8 M10 M12 M16 or inch sizes

Ball quantity: 1/2 /3/4 pcs

Specificiation

Stainless steel quick release ball lock pin

Model

Material

Body

Knob

Button

Spring

Ball

Ring

Y106F

Stainlesssteel

Aluminum/Plastic

Stainlesssteel

d1-0.04 / -0.08	A Min	A Max	l1+0.6	d2	d3	d4	l2+-1	l3-0.2	bore H11
5	4.92	4.96	10/15/20/25/30/35/40/45/50/60/70/80	5.5	30	16	6	26	5
6	5.92	5.96	10/15/20/25/30/35/40/45/50/60/70/80	7	30	16	7.1	26	6
8	7.92	7.96	10/15/20/25/30/35/40/45/50/60/70/80/90 /100	9.5	35	19	8.2	32.5	8
10	9.92	9.96	15/20/25/30/35/40/45/50/60/70/80/90/100/110/120	12	35	19	9.6	32.5	10
12	11.92	11.96	20/25/30/35/40/45/50/60/70/80/90/100/110/120	14.5	42	25	10.6	39	12
16	15.92	15.96	30/35/40/45/50/60/70/80/90/100/110/120/130/140/150	19	42	25	14	39	16

Description

Quick Release Pin material can be stainless steel 304, stainless steel 316, 17-4Ph stainless steel, Alloy Steel,

Quick release pin, also called ball lock pin, ball locking pin, self-locking pin,

We use a quick release pin when we need a positive stop. There is spring inside the pin, when we press the button, the pins can be quick released and slip into holes in the components. Then we release the button, the balls at the end of the pin will lock and fasten the components. There are usually 2-3 balls at the end of the pin.

To choose a right quick release pin, diameter and grip length is needed. The hole in the components used determines the pin diameter, the grip length, also called usable length, is the length between the the bottom of the handle and the top of the balls.

Wuxi Sunny has a great variey of quick release pins, we list some per below:

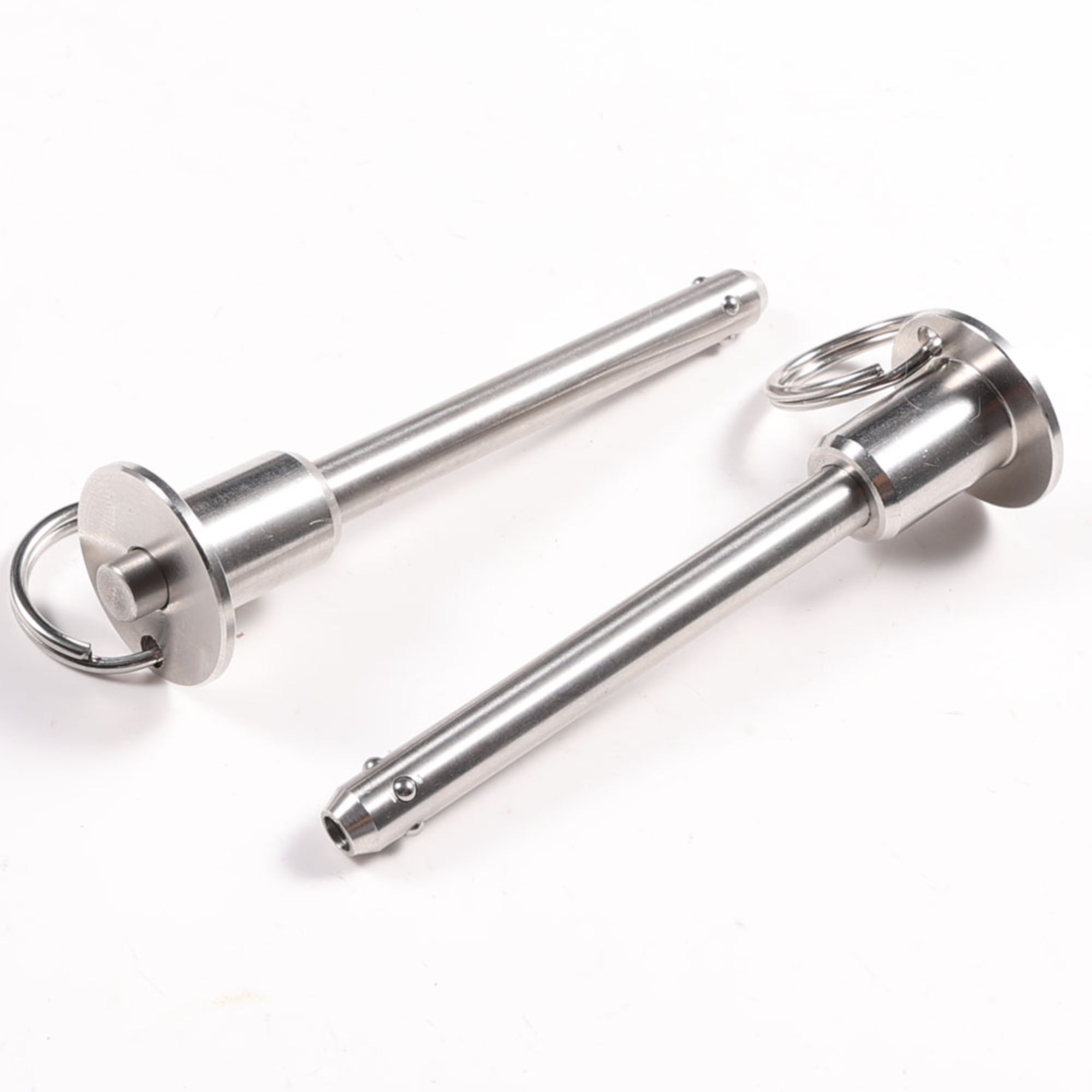

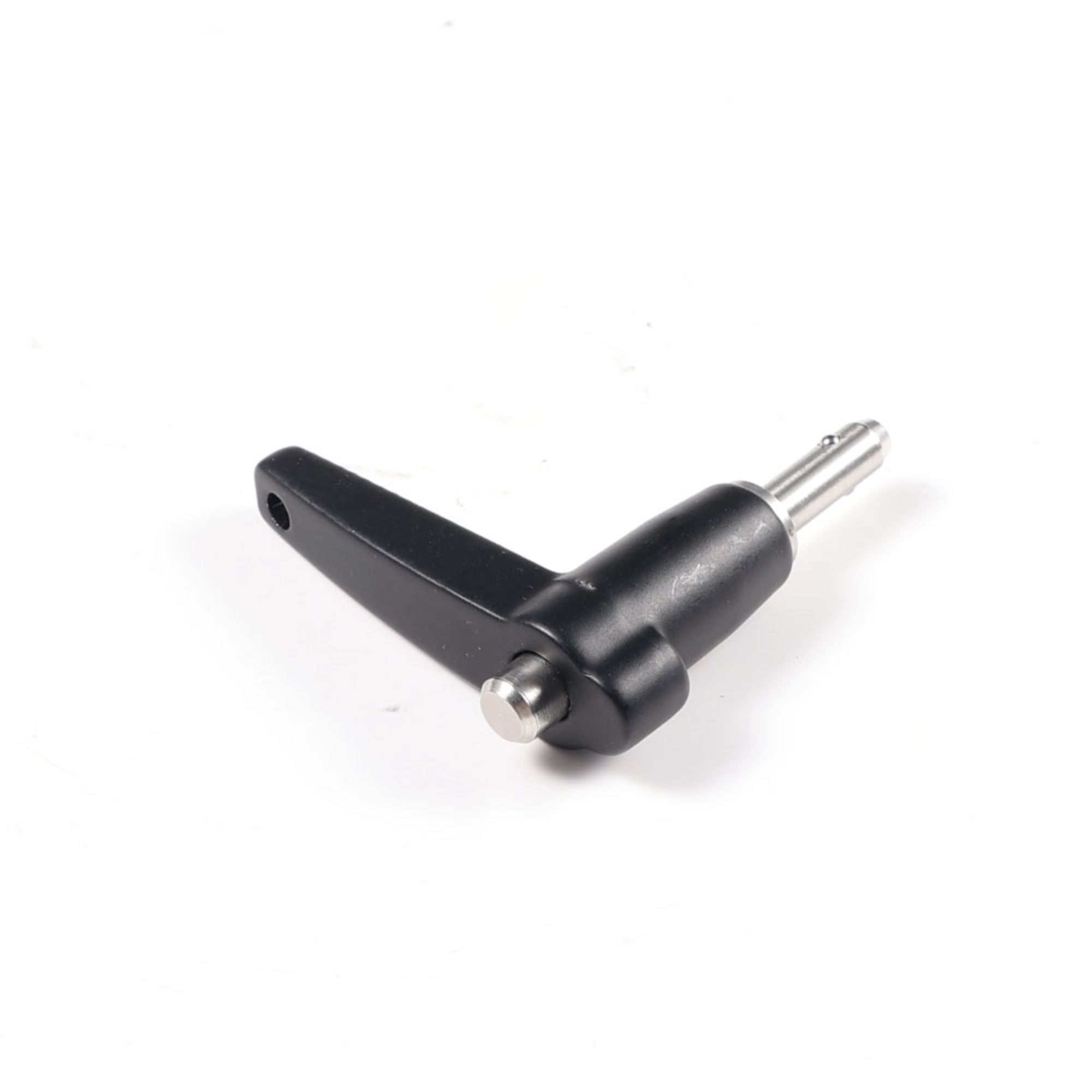

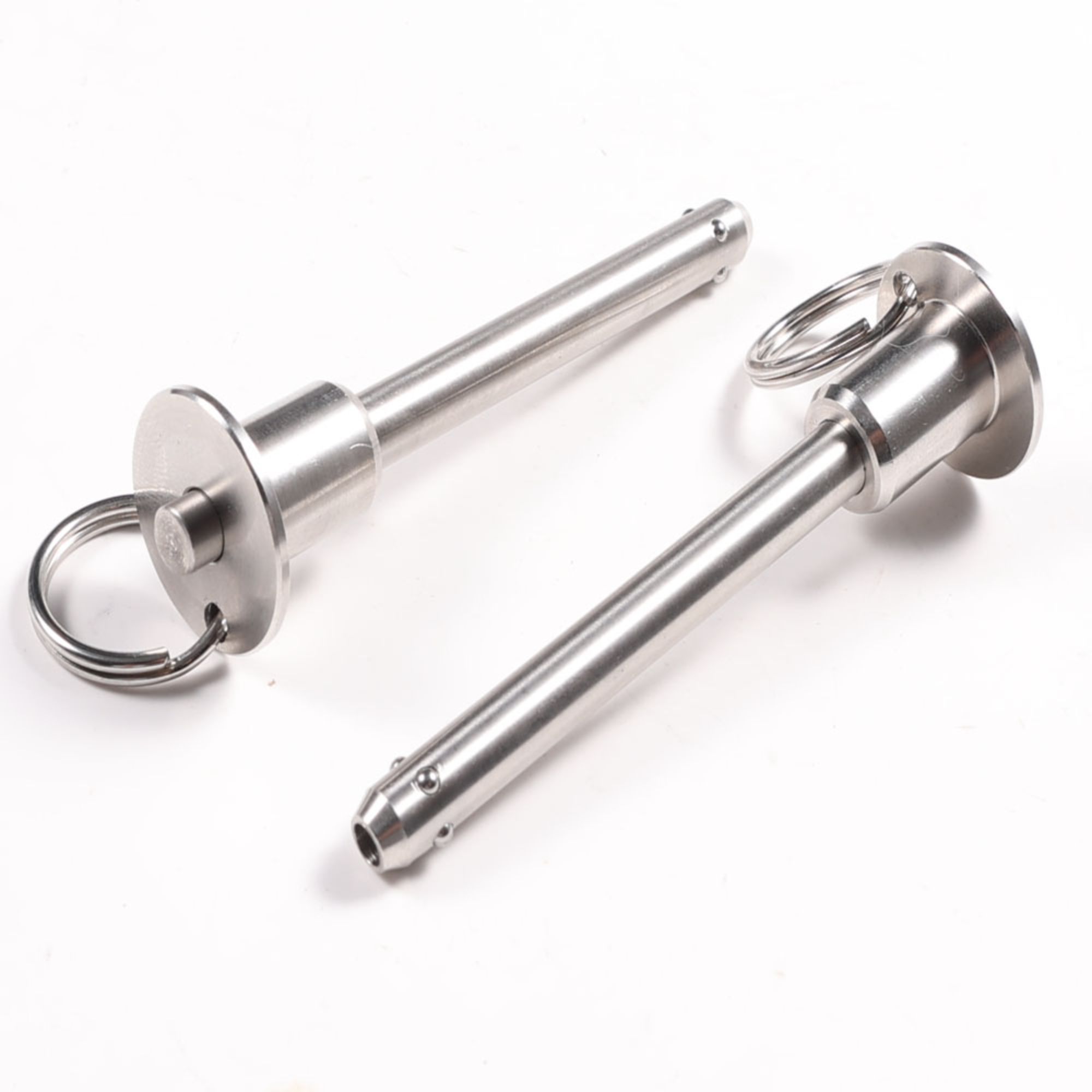

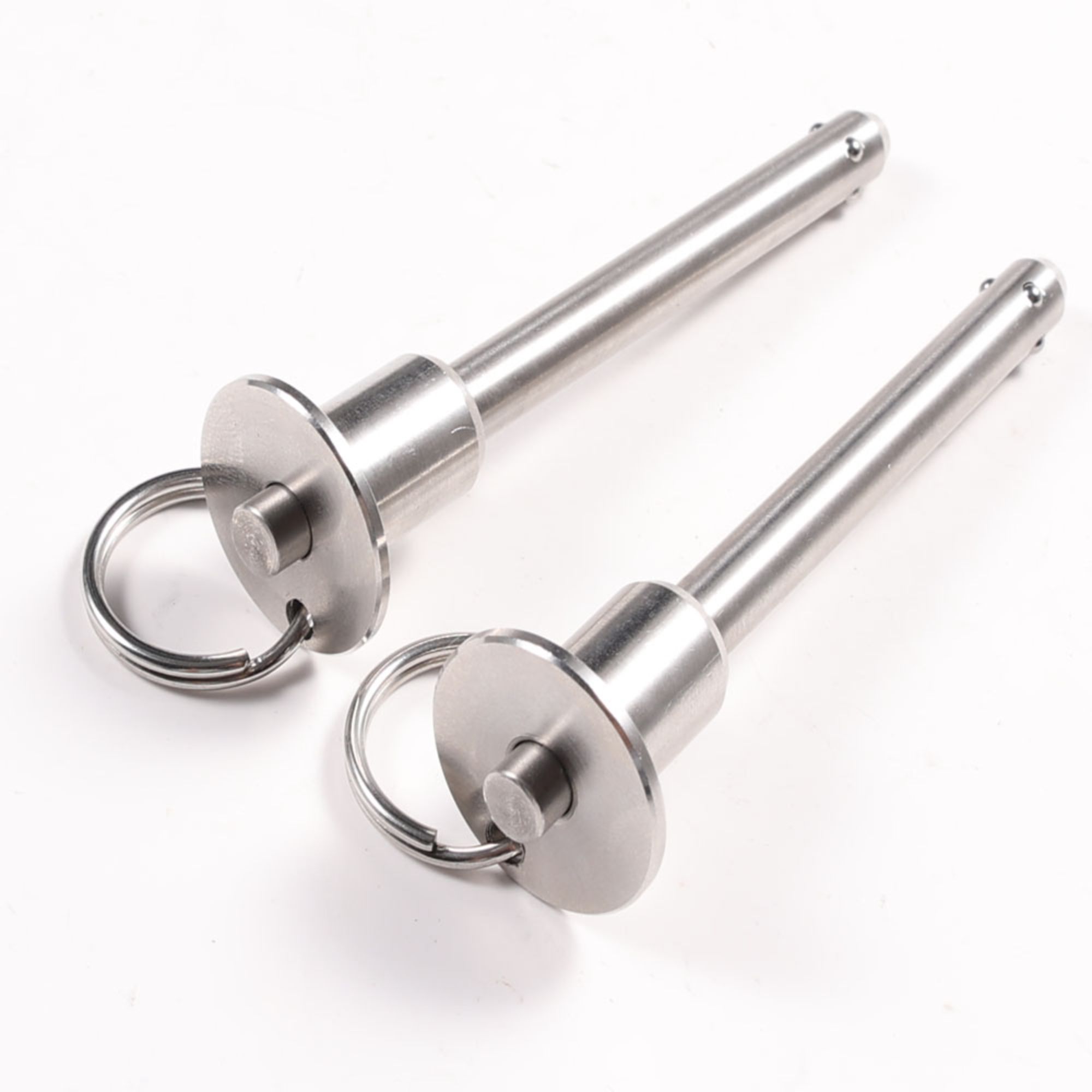

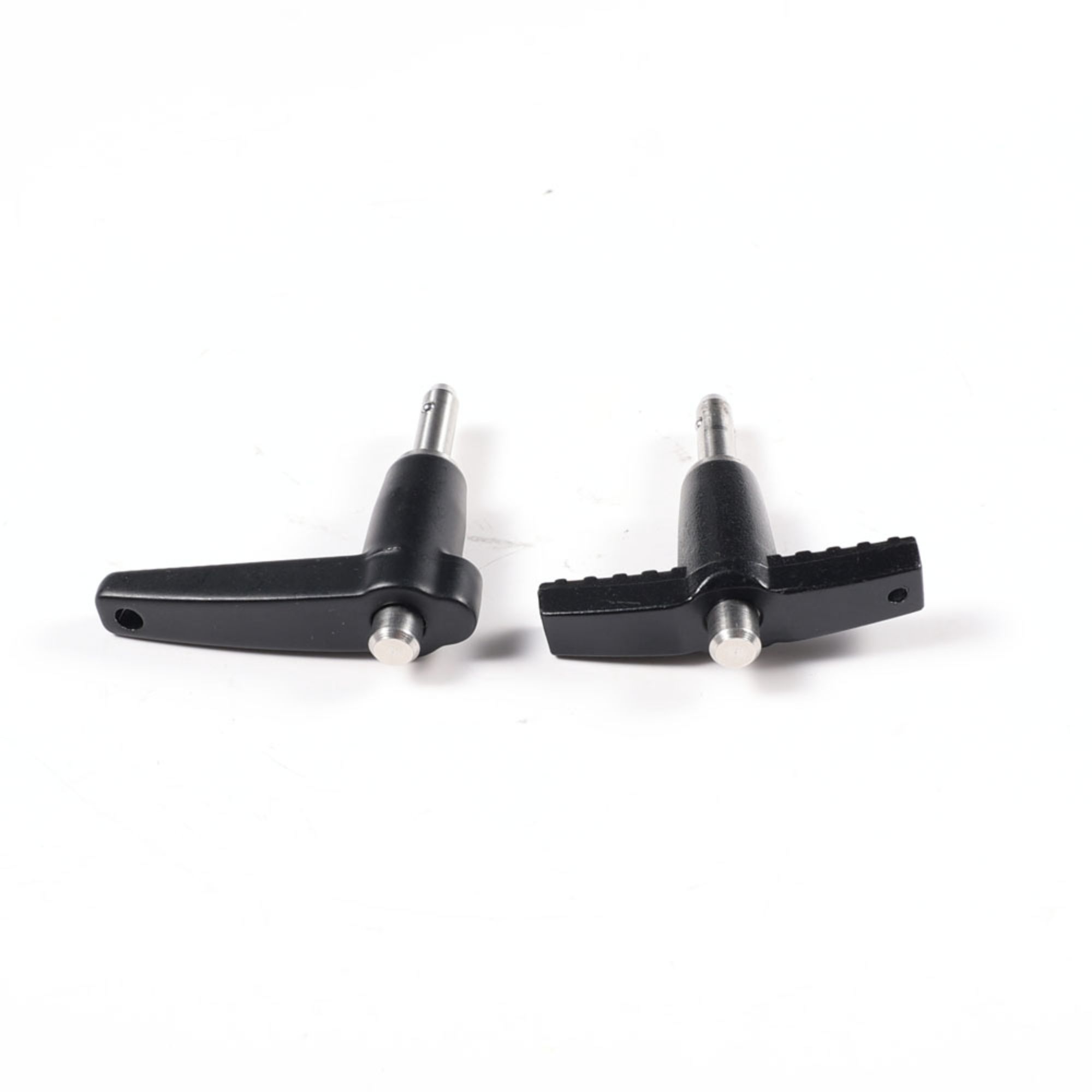

Button Handle, Ring Handle, T Handle, L Handle, Marine Style, Heavy Duty, Recessed Button Handle, Marine Hitch Quick Release pin, Ring Handle Marine Handle Pin

In addition to Quick release pin, wxsunny also offers the following pins

Indexing plungers

Wire lock pin

Hitch pin

Lynch pin

Spring pin

Cylindrical pin
