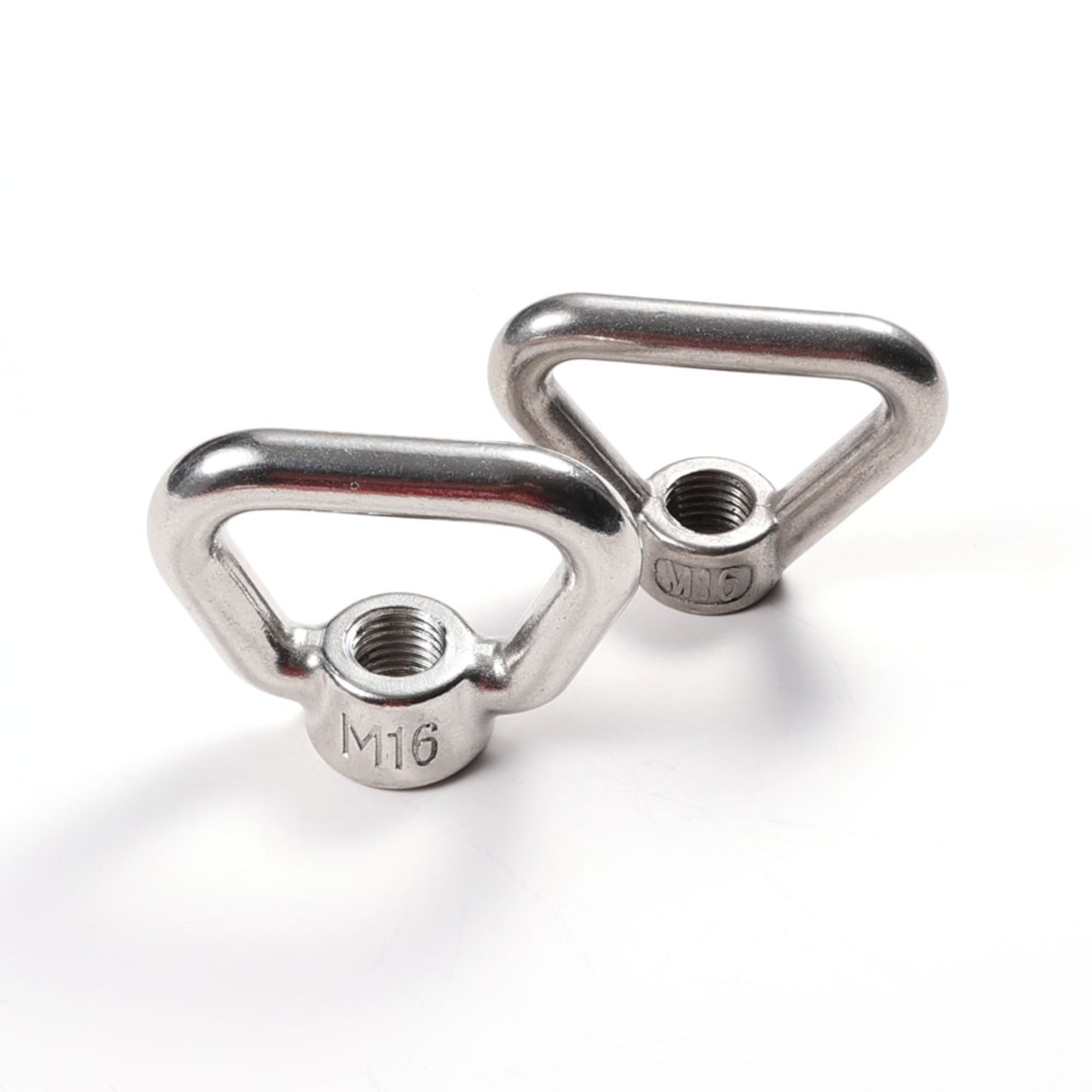

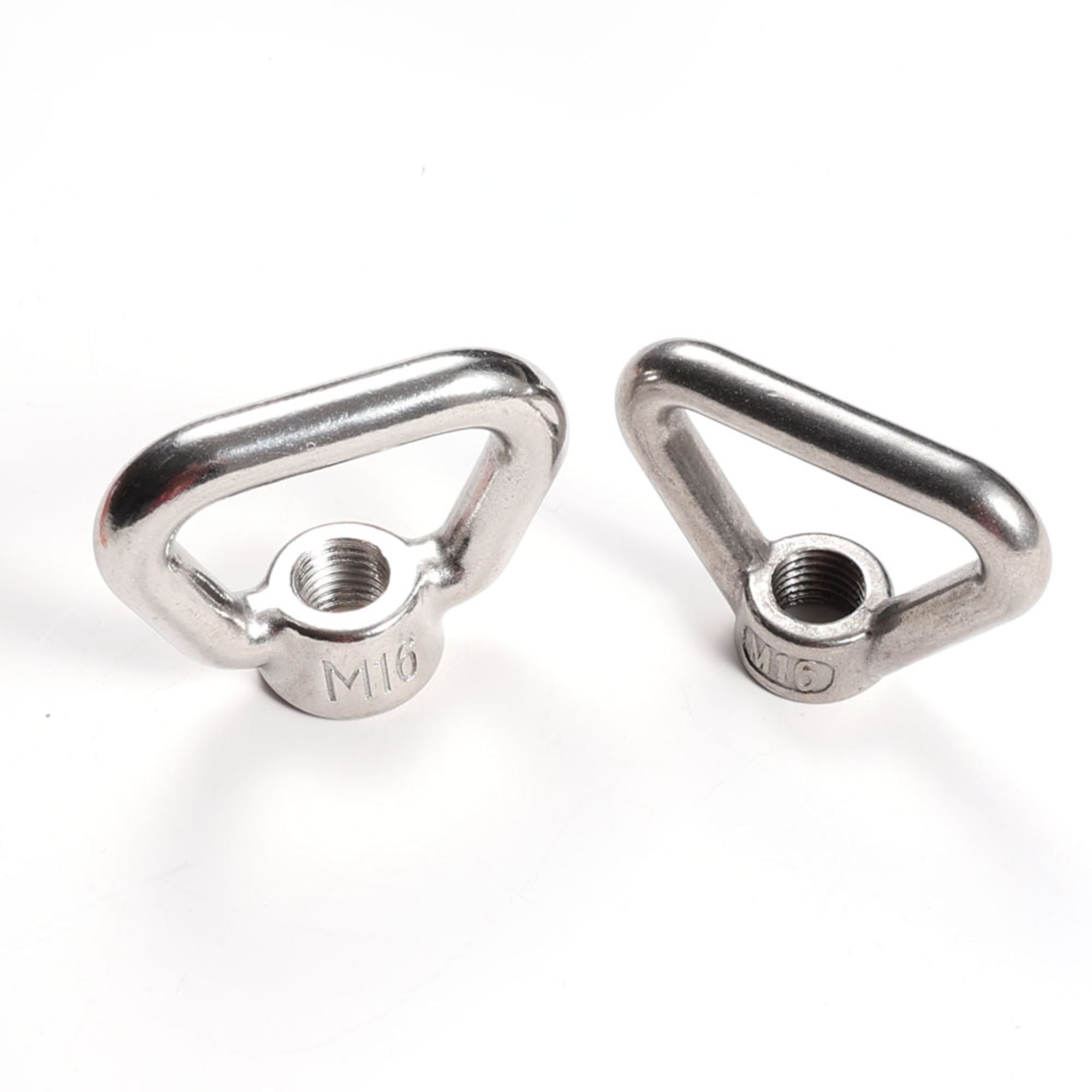

Fastener 304 M12 M16 M20 M24 Stainless Steel Triangle Ring Shape Lifting Eye Bolt Nut

Fastener 304 M12 M16 M20 M24 Stainless Steel Triangle Ring Shape Lifting Eye Bolt Nut

  • Features
  • Specification
  • Description
  • Quick Details
  • Video
  • Inquiry
  • Related Products

Features

Quick Details:

Material:

Stainless steel 18-8

Stainless steel 316

Zinc plated or hot dip galvanized

M6-M36 size available

Standard DIN582 or custom


Specificiation


Lifting eye nuts, DIN 582
d1M6M8M10M12M16M20M24M30
h36364553627190109
b13131720.527303645
d236364554637290108
d32020253035405065
d42020253035405060
k88101214162024
d1M36M42M48M56M64Material: carbon steel /stainlesssteel 304/316,A2,A4
h128147168187208
b5463687890
d2126144166184206
d37585100110120
d4708090100110
k2832384248

Description

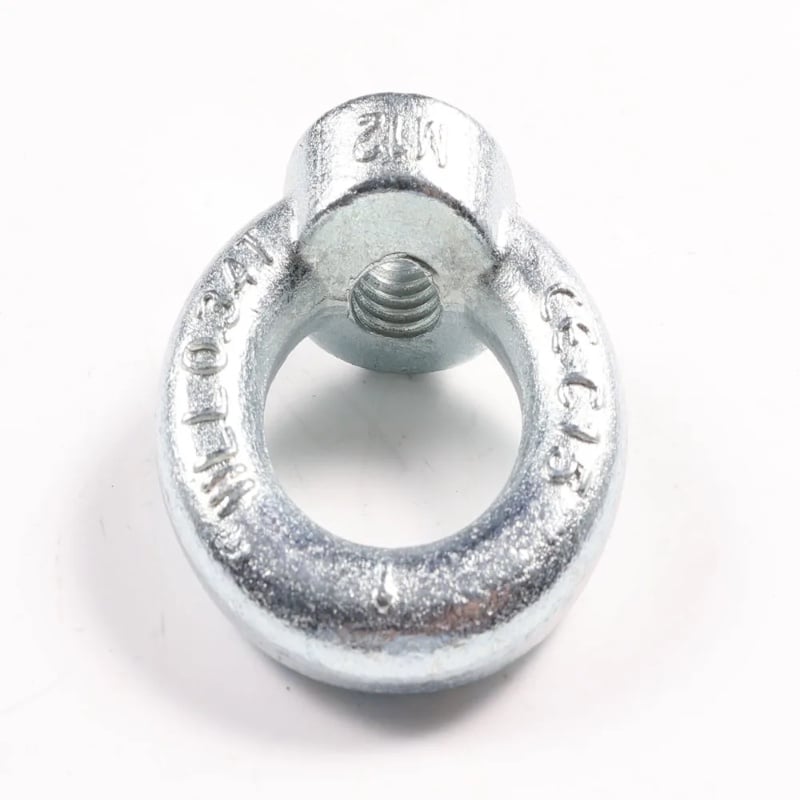

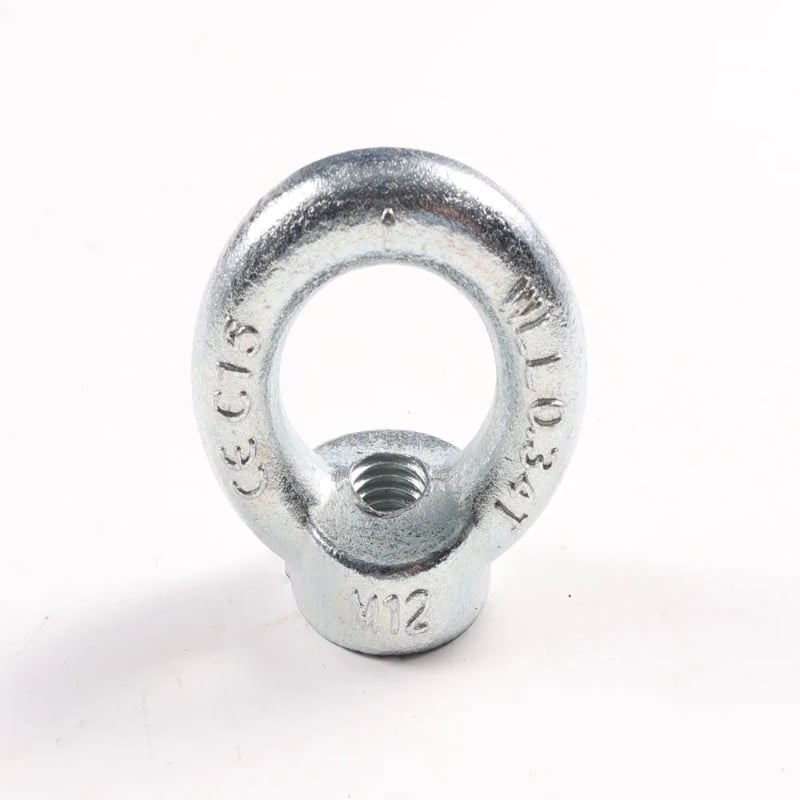

Eye nut include round eye nut like DIN582, and triangle or oval eye nut.

Eye nuts ,also known as ring nuts, are internally threaded nuts with a loop head which is to receive a hook or a rope.


Nuts types

Hex type nut include hexagon nut, hex jam nut, hex slotted nut, hex flange nut, hex nylock nut

Hex type nuts has a hex shape and is easy for a wrench to grip.

Lock nuts include all metal lock nut, nylon insert lock nut

Coupling nut include hex coupling nut and round coupling nut,

Coupling nuts, also known as coupler nuts, rod couplings, are used to join two threaded rod or pipes or other threaded parts. Hex Coupling nuts feature an external hex shape which is easier for a wrench, while round coupling nuts feature smooth round body. Cap nuts, also known as acorn nuts, feature a hex nut base and domed head, cap nuts are designed to cover and protect exposed threads.

We have two types of cap nuts, one type with dome head, standard is DIN1587, the other type of cap nut has a lower profile.

Weld nuts,

We have hex weld nut, square weld nut, round base weld nut, tab base weld nuts.

Hex Weld nuts, feature a normal hex nut shape with projections for welding to another object. Hex weld nuts has three projections or six projections. More projection can make the hold of welded joint strongerl

Square weld nut has a square nut shape with four projections. Square weld nuts are designed to create a permanent fastening when welded to another object.

Insert Nut include wood insert nut used in furniture, rivet nut, and brass threaded insert nut;

Wood insert nut features an internal machine thread and external thread which make it easier to hold in wood panels and hard to pull out.

Thumb nut, also known as knurled nut, features a knurling on head, which makes the hand easy to grip and tighten.
