Features
Quick Details:
Size: M2~M6
Body shape: Hex
Type: Male-female type
Material : Stainless Steel 304/316
Finish: Plain
Specificiation

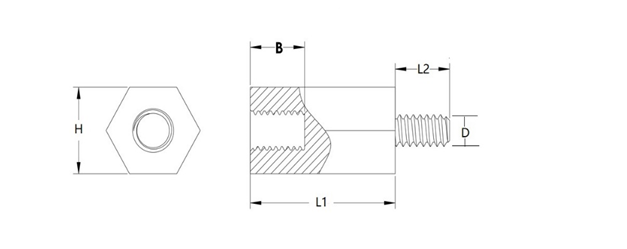

| AcrossFlats H | 4 | 4.5 | 4.6 | 6 | 7 | 8 |
| Diameter/LengthD | M2 | M2.5 | M3 | M4 | M5 | M6 |
| 3 | 2*3+4 | / | / | / | / | / |
| 4 | 2*4+4 | 2.5*4+4 | 3*4+6 | / | / | / |
| 5 | 2*5+4 | 2.5*5+4 | 3*5+6 | 4*5+6 | / | / |
| 6 | 2*6+4 | 2.5*6+4 | 3*6+6 | 4*6+6 | / | / |
| 7 | 2*7+4 | 2.5*7+4 | 3*7+6 | / | / | / |
| 8 | 2*8+4 | 2.5*8+4 | 3*8+6 | 4*8+6 | 5*8+8 | 6*8+8 |
| 9 | 2*9+4 | 2.5*9+4 | 3*9+6 | / | / | / |
| 10 | 2*10+4 | 2.5*10+4 | 3*10+6 | 4﹡10+6 | 5﹡10+8 | 6﹡10+8 |
| 11 | / | / | 3*11+6 | / | / | / |
| 12 | 2*12+4 | 2.5*12+4 | 3*12+6 | 4*12+6 | 5*12+8 | 6*12+8 |
| 13 | / | / | 3*13+6 | / | / | / |
| 14 | 2*14+4 | 2.5*14+4 | 3*14+6 | / | / | / |
| 15 | / | / | 3*15+6 | 4*15+6 | 5*15+8 | 6*15+8 |
| 16 | 2*16+4 | 2.5*16+4 | 3*16+6 | 4﹡16+6 | / | / |
| 18 | / | 2.5*18+4 | 3*18+6 | 4*18+6 | 5*18+8 | 6*18+8 |
| 20 | 2*20+4 | 2.5*20+4 | 3*20+6 | 4*20+6 | 5*20+8 | 6*20+8 |
| 22 | / | / | 3*22+6 | 4*22+6 | / | / |
| 25 | / | 2.5*25+4 | 3*25+6 | 4*25+6 | 5*25+8 | 6*25+8 |
| 30 | / | 2.5*30+4 | 3*30+6 | 4*30+6 | 5*30+8 | 6*30+8 |
| 35 | / | / | 3*35+6 | 4*35+6 | 5*35+8 | 6*35+8 |
| 40 | / | / | 3*40+6 | 4*40+6 | 5*40+8 | 6*40+8 |
| 45 | / | / | 3*45+6 | 4*45+6 | 5*45+8 | 6*45+8 |
| 50 | / | / | 3*50+6 | 4*50+6 | 5*50+8 | 6*50+8 |
| 55 | / | / | 3*55+6 | 4*55+6 | / | / |
| 60 | / | / | 3*60+6 | 4*60+6 | 5*60+8 | 6*60+8 |
| 70 | / | / | / | 4*70+6 | 5*70+8 | 6*70+8 |
| 80 | / | / | / | 4*80+6 | 5*80+8 | 6*80+8 |
| 100 | / | / | / | 4*100+6 | 5*100+8 | 6*100+8 |
Description

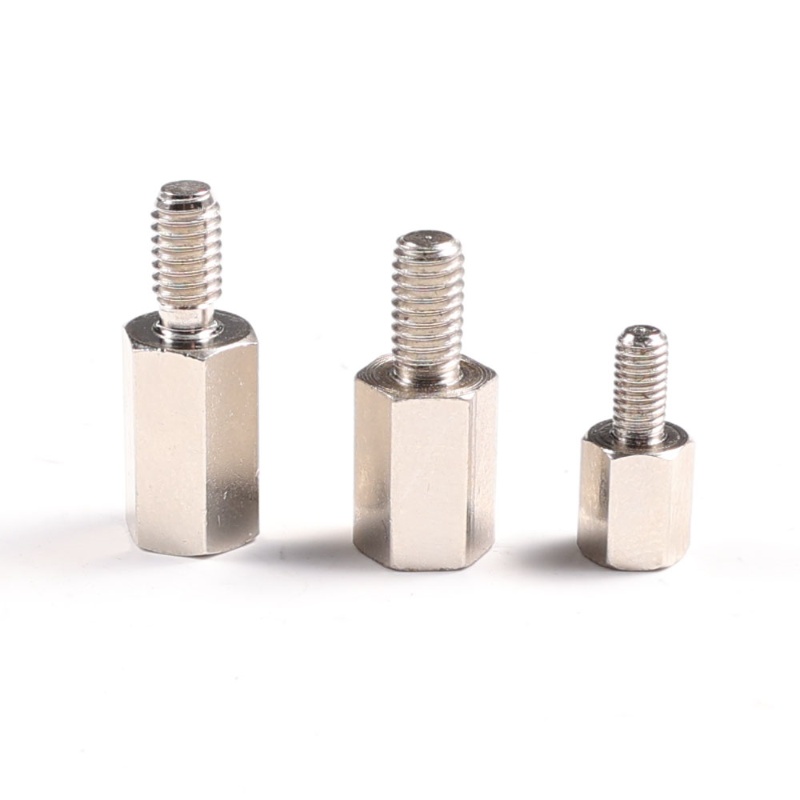

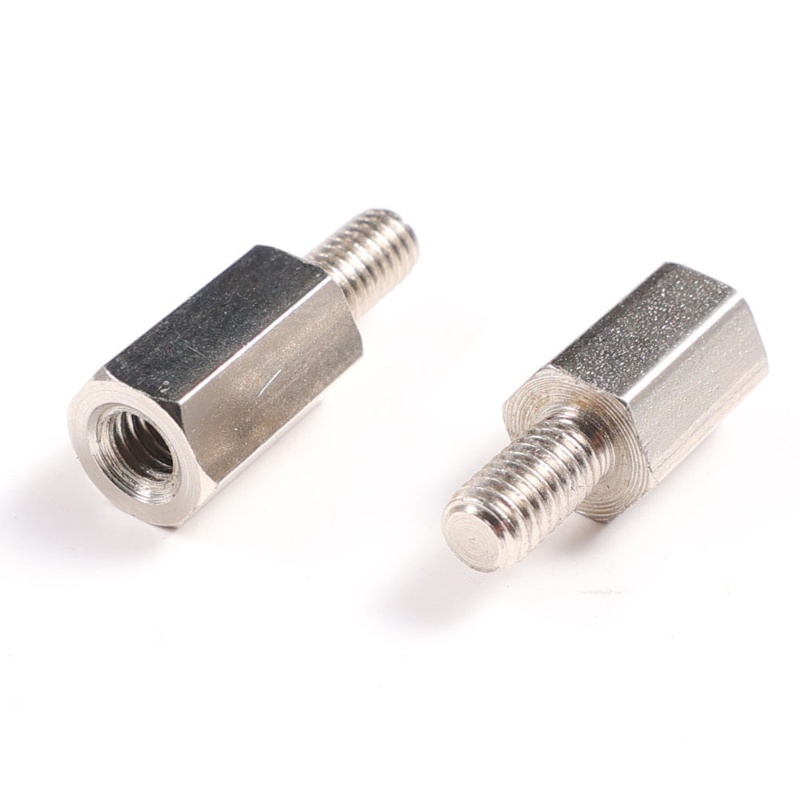

Male-female Standoff has a threaded stud on one end, the other end is a hex or round body, this standoff is designed for printed circuit board mounting or other electronic components where require close dimension controls.

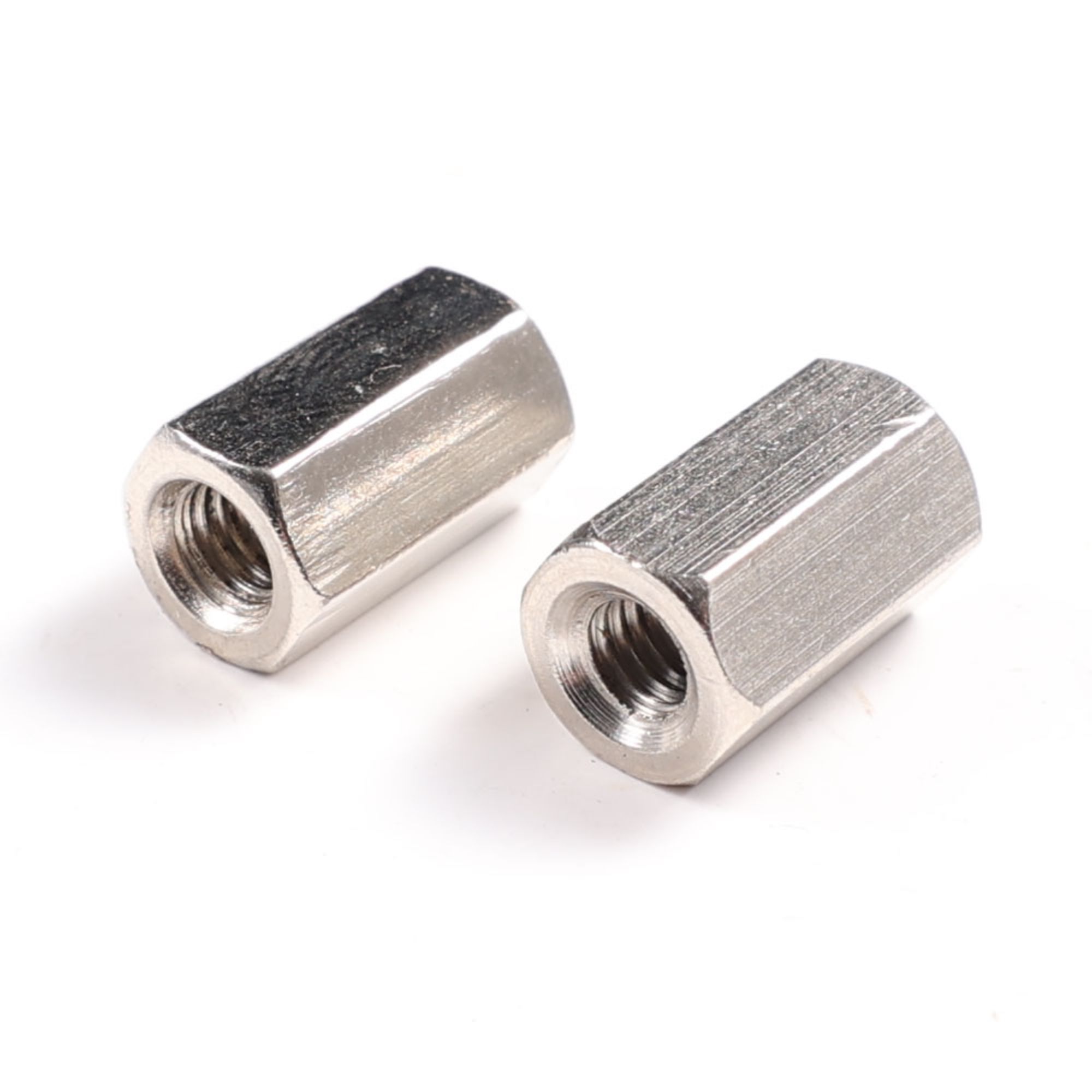

Female-female standoff, also named threaded spacer, it features female threads on both ends of the part. This design is for a screw of male standoff to be screwed on either end. Hex flats make the standoff easy to grip during installation.

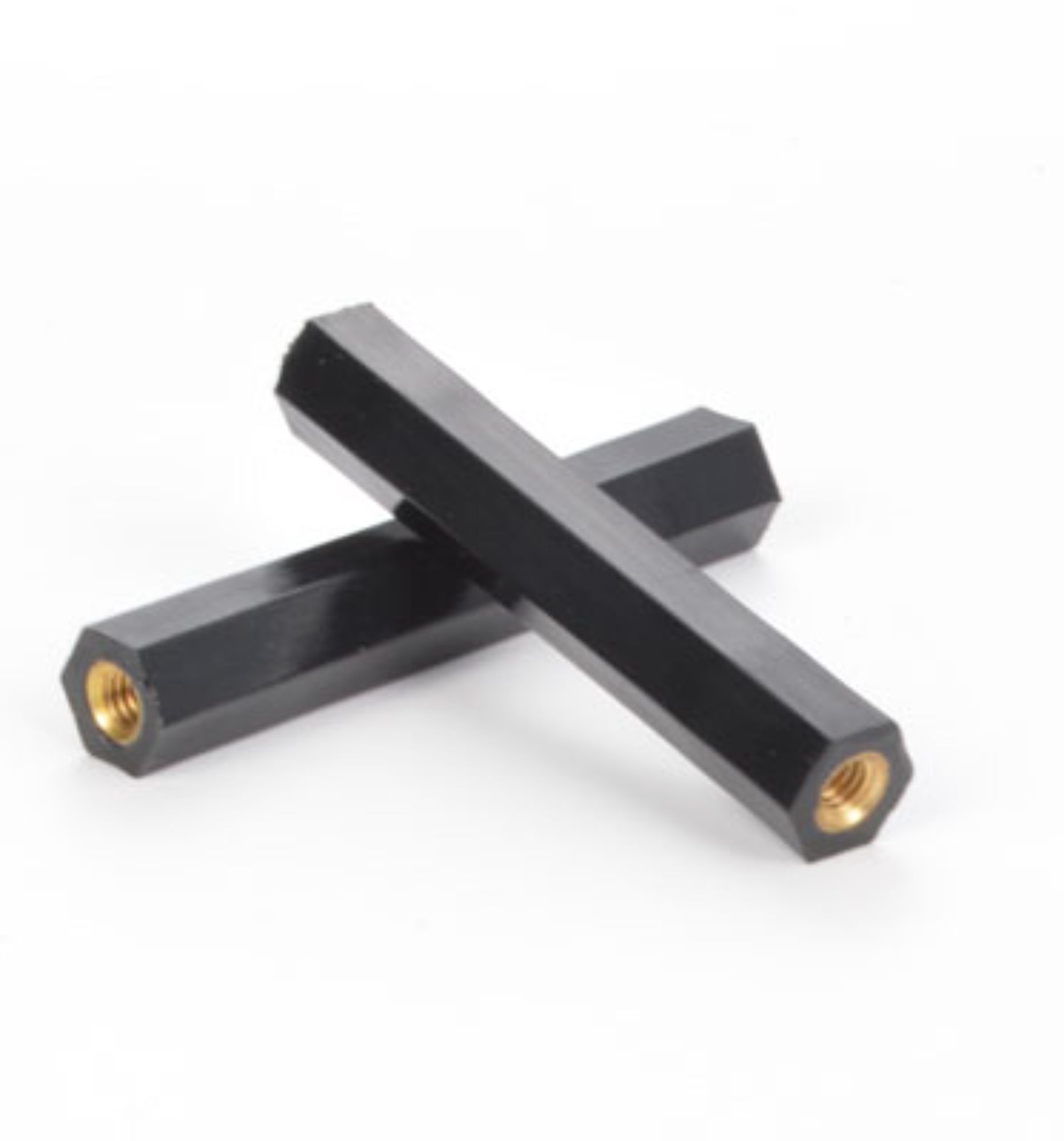

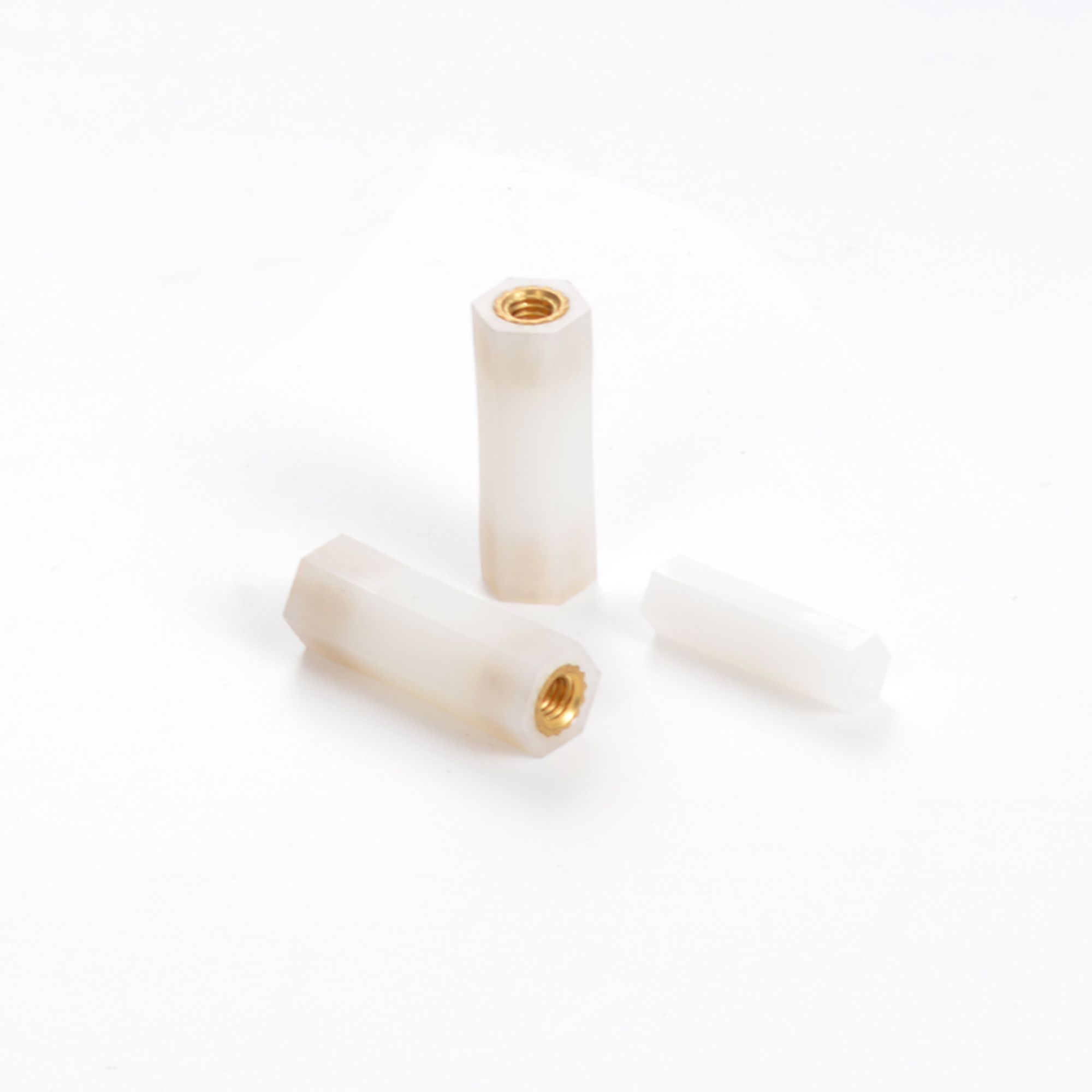

Insulating nylon standoff is designed to keep parts from touching then prevents electrical shorts. We have nylon standoff with metal inserts, usually brass insert.
Round standoff, also known as female to female standoff, is designed to connect two piece of material together.
Standoff types:

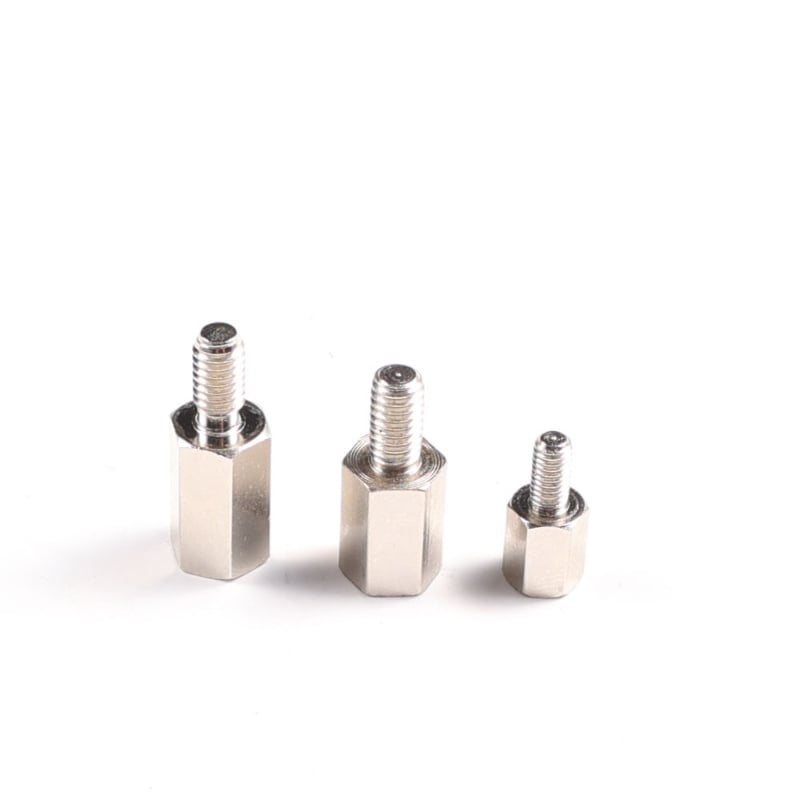

Male-female hex standoff
Female-female hex standoff adapter
Male-female round standoff
Female-female round standoff adapter
Standoff material:
Stainless steel 304/316
Brass
Nylon
Aluminum
Carbon steel with zinc plated or nickel plated.
Nylon with brass insert
Standoff shape:
Round, hexagonal , square
